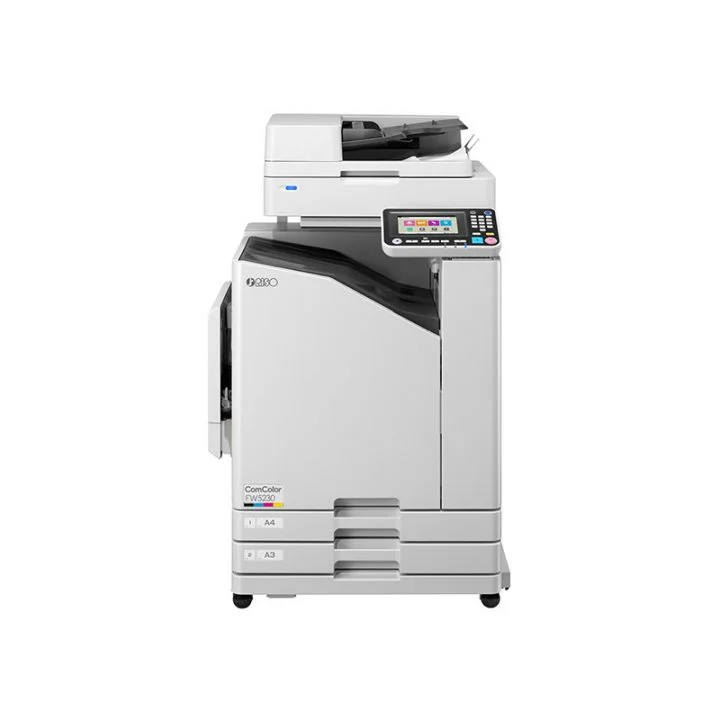

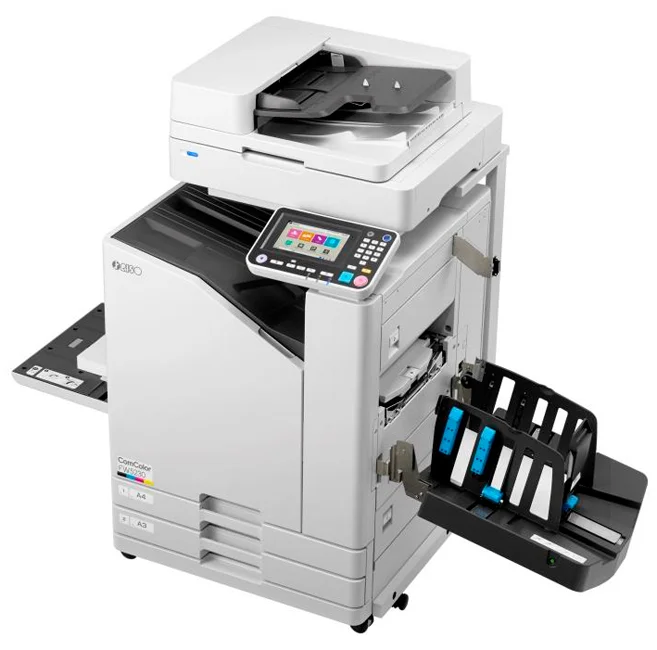

RISO

FW 5230

ComColor Machine

Print Speed

Up to 120 ppm

RESOLUTION

300 × 300 dpi (standard)
600 × 600 dpi
(fine mode)

CONNECTIVITY

Ethernet

USER INTERFACE

Color LCD
touch panel

ORIGINAL SIZE

Minimum: 90 × 148 mm
Maximum: 340 × 550 mm

MAX PRINTING AREA

310 mm × 544 mm

PAPER TRAY CAPACITY

Up to ~1,000 sheets input/
Up to ~500 sheets output

PAPER WEIGHT

46 to 210 gsm

TECHNICAL SPECIFICATIONS

Printer Specifications Table

Print Type	Line-type inkjet system
Ink Type	Oil-based pigment ink (Cyan, Magenta, Yellow, Black)
Print Resolution	Standard: 300 dpi (main scanning direction) x 300 dpi (sub-scanning direction) Fine: 300 dpi (main scanning direction) x 600 dpi (sub-scanning direction)
Number of Gray Levels	For each CMYK color (11 gray levels)
Data Processing Resolution	Standard: 300 dpi x 300 dpi Fine: 600 dpi x 600 dpi Line smoothing: 600 dpi x 600 dpi
Warm-up Time	2 min. 30 sec. or less (at room temperature of 23°C (73.4°F))
First Print Time	5 sec. or less (A4 long-edge feed)
First Copy Time	7 sec. or less (A4 long-edge feed)
Continuous Print Speed	A4 long-edge feed	Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm)
	Letter long-edge feed	Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm)
	A4 short-edge feed	Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm)
	Letter short-edge feed	Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm)
	B4 (JIS) short-edge feed	Simplex: 76 ppm Duplex: 34 sheets/minute (68 ppm)
	Legal short-edge feed	Simplex: 76 ppm Duplex: 34 sheets/minute (68 ppm)
	A3 short-edge feed	Simplex: 66 ppm Duplex: 32 sheets/minute (64 ppm)
	Ledger short-edge feed	Simplex: 65 ppm Duplex: 32 sheets/minute (64 ppm)
Paper Size	Standard Tray	Maximum: 340 mm x 550 mm (13 3/8″ x 21 5/8″) Minimum: 90 mm x 148 mm (3 9/16″ x 5 27/32″)
	Feed Tray	Maximum: 297 mm x 432 mm (11 11/16″ x 17″) Minimum: 182 mm x 182 mm (7 3/16″ x 7 3/16″)
Printable Area	Maximum: 310 mm x 544 mm (12 3/16″ x 21 13/32″)
Guaranteed Print Area	Standard: Margin width of 5 mm (7/32″) Maximum: Margin width of 3 mm (1/8″)
Paper Weight	Standard Tray	Simplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) for A4 and Letter 46 gsm to 104 gsm (12-lb bond to 28-lb bond) for Ledger, A3, Legal, and B4
	Feed Tray	Simplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond) Duplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
Paper Tray Capacity	Standard Tray	Height up to 110 mm (4 5/16″)
	Feed Tray	Height up to 56 mm (2 3/16″) (x 2 trays)
Output Tray Capacity	Height up to 56 mm (2 3/16″)
PDL (Page Description Language)	RISORINC/C IV
Supported Protocols	TCP/IP, HTTP, HTTPs, DHCP, ftp, lpr, IPP, SNMP, Port 9100 (RAW port), IPv4, IPv6, IPsec
Supported Operating Systems	Standard	Microsoft®: Windows Vista® (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 10 (32-bit/64-bit), Windows Server® 2008 (32-bit/64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2012 (64-bit)
	Optional	Mac®: OS X 10.8 (64-bit), 10.9 (64-bit), 10.10 (64-bit), 10.11 (64-bit) Linux (compatible with PPD only)
Network Interface	Ethernet 1000BASE-T, 100BASE-TX, 10BASE-T
Memory Capacity	4 GB
Hard Disk	Capacity	500 GB
	Available Space	Approx. 430 GB
Operating System	Linux
Power Source	AC 100-240 V, 10.0-5.0 A, 50-60 Hz
Power Consumption	Max. 1,000W
	Ready: 150 W or less Sleep: 4 W or less Stand-by: 0.5 W or less
Operating Noise	Max. 65 dB (A) A4 long-edge feed (Simplex) at the maximum print speed
Operating Environment	Temperature: 15°C to 30°C (59°F to 86°F) Humidity: 40% to 70% RH (non-condensing)
Dimensions (W x D x H)	In use: 1,030 mm x 725 mm x 1,115 mm (40 19/32″ x 28 9/16″ x 43 29/32″) With cover and tray closed: 775 mm x 705 mm x 970 mm (30 17/32″ x 27 25/32″ x 38 7/32″)
Weight	Approx. 135 kg (297 lb)
Safety Information	IEC60950-1 compliant, Indoor, pollution degree 2, At altitudes of 2,000 m or lower
Required Space (W x D x H)	1,305 mm x 1,215 mm x 1,115 mm (51 13/32″ x 47 27/32″ x 43 29/32″)

Endurance in Every Page.
Performance Without Pause.

Engineered for demanding print environments, it thrives under pressure and delivers continuous output with unwavering consistency. It moves through high-volume tasks with ease while maintaining speed without compromising clarity or alignment. Designed to minimize downtime, its smooth operation keeps workflows flowing and teams focused. Interaction feels intuitive and immediate, allowing users to shift between tasks without disruption. Every function supports sustained productivity, from long print runs to quick turnarounds. With a balance of precision and durability, it transforms heavy workloads into a seamless, controlled process—built to handle more without slowing down.

Steady Output, Built to Last. Flow That Doesn’t Break.

Crafted for environments where consistency matters, this system maintains a reliable rhythm through extended print runs, keeping production stable even during demanding workloads. It preserves clean detail and precise alignment across every page, ensuring results remain uniform from the first sheet to the last. Its operation is designed to reduce friction between tasks, allowing work to move forward without unnecessary pauses or slowdowns. Whether handling daily office demands or larger batch jobs, it supports a smooth, uninterrupted process that keeps productivity grounded and manageable.

"Clarity in Every Task.
Consistency You Can Count On."

Balanced Performance, Every Cycle. Consistency That Carries Through.

Designed to maintain a steady pace across extended jobs, this system keeps output uniform and controlled from the first page onward. It reduces fluctuations during long runs, helping preserve sharp detail and accurate alignment throughout the entire process. Built for sustained operation, it supports continuous workloads without noticeable slowdowns. Each task moves forward with the same level of reliability, ensuring results stay consistent even as demand increases.
