RISO

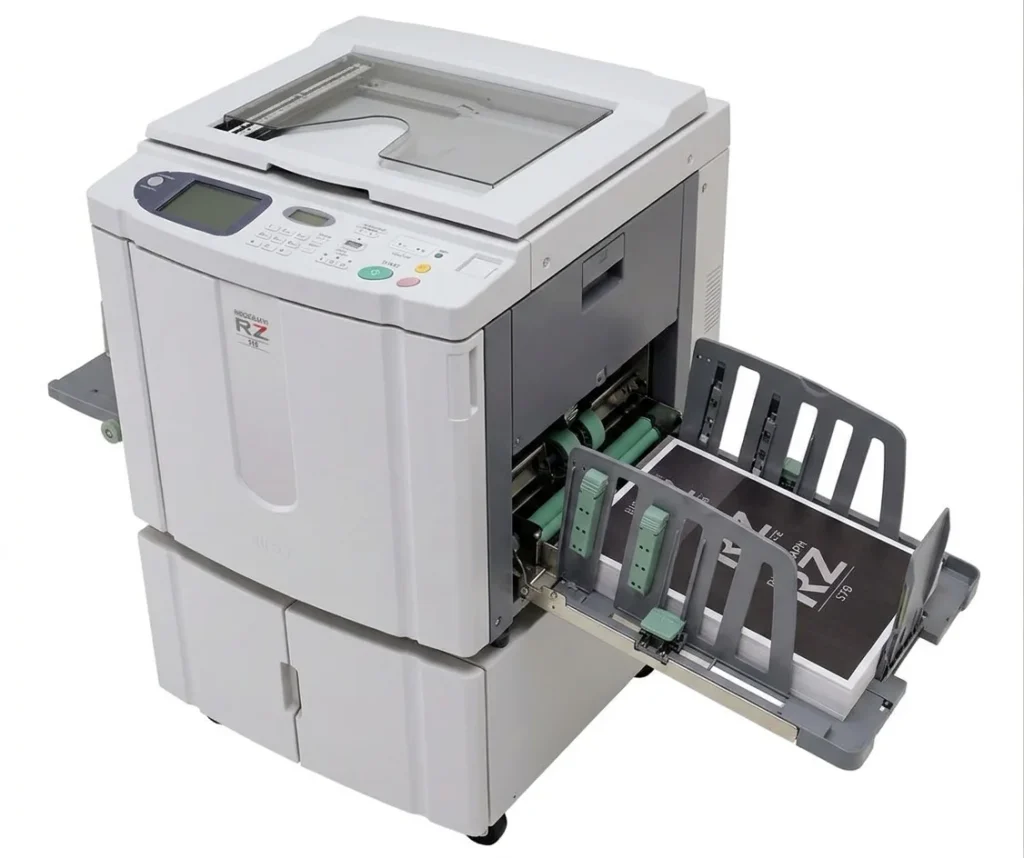

RZ 220/221

Duplicator Machine

Print Speed

Up to 150 ppm

RESOLUTION

300 x 600 dpi

CONNECTIVITY

USB PC Interface

USER INTERFACE

LED Panel

ORIGINAL SIZE

340 × 550 mm

MAX PRINTING AREA

314 mm x 548 mm

PAPER TRAY CAPACITY

up to 1000 sheets input/
up to 800 sheets output

PAPER WEIGHT

46 to 210 gsm

TECHNICAL SPECIFICATIONS

Color Support	Full color
Print Type	Line-type inkjet system
Ink Type	Oil-based pigment ink (Cyan, Magenta, Yellow, Black)
Resolution	Standard: 300 dpi × 300 dpi Fine: 300 dpi × 600 dpi
Number of Gray Levels	8 levels for each CMYK color
Data Processing Resolution	Standard: 300 dpi × 300 dpi Fine: 300 dpi × 600 dpi Line smoothing: 600 dpi × 600 dpi
Warm-up Time	2 min. 45 sec. or less (at 20°C / 68°F)
First Print Time	Monochrome: 8 sec or less¹ Color: 8 sec or less (A4/Letter-R orientation)
Continuous Print Speed	A4-R: 150 ppm (Duplex: 150 ppm / 75 sheets) Letter-R: 146 ppm (Duplex: 146 ppm / 73 sheets) A4: 110 ppm (Duplex: 110 ppm / 55 sheets) Letter: 116 ppm (Duplex: 116 ppm / 58 sheets) B4/Legal: 90 ppm (Duplex: 90 ppm / 45 sheets) A3: 80 ppm (Duplex: 80 ppm / 40 sheets) Ledger: 78 ppm (Duplex: 78 ppm / 39 sheets)
Duplex Printing	Standard
Paper Size	Standard Tray: 90 × 148 mm to 340 × 550 mm Feed Tray: 182 × 182 mm to 297 × 420 mm
Printable Area	Maximum: 314 × 548 mm
Guaranteed Print Area	Standard margin: 3 mm Maximum margin: 1 mm
Paper Weight	46 to 210 GSM (12-lb to 56-lb bond)
Paper Feed / Tray Capacity	Standard: 500 sheets Optional: 1,000 sheets
Continuous Printing Capacity	Up to 9,999 sheets
Output Tray Capacity	Standard: 500 sheets Optional: 1,000 sheets
Power Source	AC 100–240 V, 50–60 Hz
Power Consumption	Max: 1,000 W Ready: 250 W Sleep: 45 W Hibernate: 1 W
Operating Noise	Max. 60 dB
Operating Environment	Temperature: 15°C to 30°C Humidity: 40% to 70% RH
Dimensions (W × D × H)	1,170 × 695 × 1,020 mm
Weight	175 kg (386 lb)
Required Space	Extended: 1,210 × 1,230 × 1,020 mm Compact: 1,150 × 695 × 990 mm

Processing	High-speed digital master-making / fully automatic stencil printing
Resolution	Scanning: 300 × 600 dpi Printing: 300 × 300 dpi
First Copy Time	Approx. 22–25 seconds (Letter/Portrait)
Printing Speed	60–130 ppm (5-step variable)
Original Type	Book, Sheet
Original Size	Platen: 50 × 90 mm to 310 × 432 mm ADF (optional): 100 × 148 mm to 310 × 432 mm
Original Weight	Platen: Up to 22 lb bond ADF: 13–34 lb bond (50–128 gsm)
Print Paper Size	Standard: 100 × 148 mm to 310 × 432 mm Extended: up to 310 × 555 mm
Paper Weight	46–157 gsm (standard)
Printing Area (Max)	210 × 357 mm (8.25″ × 14.06″)
Paper Capacity	1000 sheets (feed & receive trays)
Image Processing Modes	Line, Photo, Duo, Pencil
Reduction / Enlargement	65%, 78%, 94%, 121%, 129%, 154%
Ink System	Fully automatic (approx. 1000 ml cartridge)
Master System	Fully automatic (approx. 250 masters/roll)
User Interface	LED panel with progress indicators
Power Source	100–240V AC, 50/60 Hz
Dimensions (W × D × H)	1415 × 655 × 665 mm (55.7″ × 25.8″ × 26.2″)
Weight	Approx. 100 kg (220 lbs)

Fast Operation. Reliable Output. Simple Control.

Built for demanding print environments, this machine delivers steady performance with minimal interruption. Its streamlined interface allows operators to manage tasks quickly, reducing setup time and keeping production moving. Designed for high-volume use, it produces consistent, clear prints while maintaining efficient turnaround for large jobs. With dependable operation and easy handling, it supports continuous workflow without unnecessary complexity—making it well-suited for busy offices and production settings.

High-Capacity Performance.
Dependable Operation

Engineered for continuous printing, this system supports long runs through its high paper capacity and stable feeding mechanism. It maintains uniform output quality across extended jobs, ensuring consistent results from start to finish. Built for environments with regular high-volume demands, it enables efficient job handling while minimizing interruptions—making it suitable for schools, offices, and light production use.

"Improve Daily Operations
Achieve Reliable Productivity."

Consistent Print Performance.

Maintains uniform output quality across all jobs, supporting stable operation during frequent and high-volume printing. Designed to deliver reliable results in environments with continuous workload demands.
